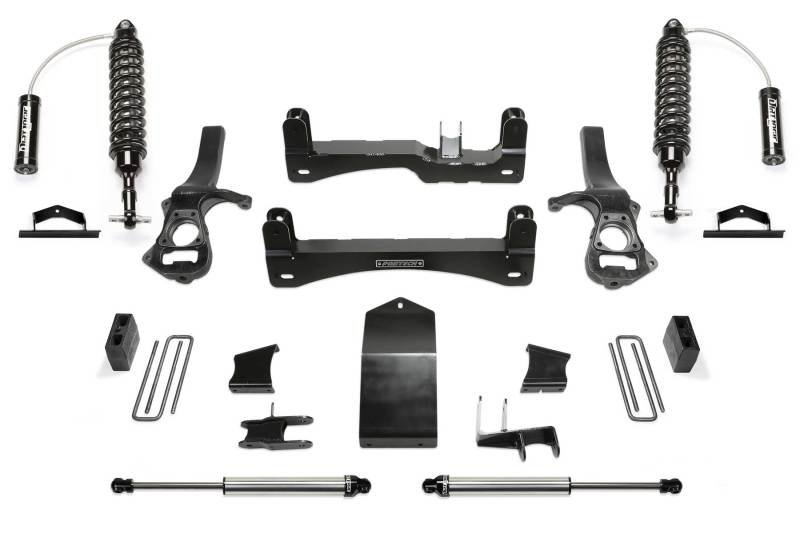

Fabtech 19-20 GM K1500 Trail Boss/AT4 4WD 4in Perf. System w/DL 2.5 Resi Coilovers & Rear DL Shocks

The Chevy Trail Boss and GMC AT4 both have a factory 2in lift compared to other GM 1500 trucks of the same year model. Fabtech’s suspension system for these two trucks provide a 4in lift height on top of the factory 2in lift for clearance of 35in tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4in system, the truck will sit at the same height as a 1500 with a 6in suspension and 35in tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4in thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished by removing the factory 2in block and replacing it with a 5in block and u-bolt system. Fabtech has addressed all aspects of the Trail Boss suspension for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty. CROSSMEMBERS: 1/4in thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment. STEERING KNUCKLES: Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance. TIE RODS: Oversized tie ro
Performance Lift System w/Shocks; 4 in Lift; w/Front Dirt Logic 2.5 Resi Coilover And Rear Dirt Logic 2.25 Shocks;
TIRE SIZE – 35/12.50R18 WHEEL – 18X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 35/12.50R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 295/65R20 WHEEL – 20X9 W/5″ BS W/MINOR TRIMMING; TIRE SIZE – 295/70R18 WHEEL – 18X9 W/5″ BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 79. FITS CREW CAB, SHORT BED MODELS ONLY.; 167. DIESEL MODELS ONLY.; 197. WILL NOT FIT MODELS EQUIPPED WITH ADAPTIVE RIDE CONTROL; 202. DOES NOT FIT 2019 CHEVY SILVERADO LD OR 2019 GMC SIERRA LIMITED 1500 MODELS. USE 2018 MODEL APPLICATION FOR THESE VEHICLES.
